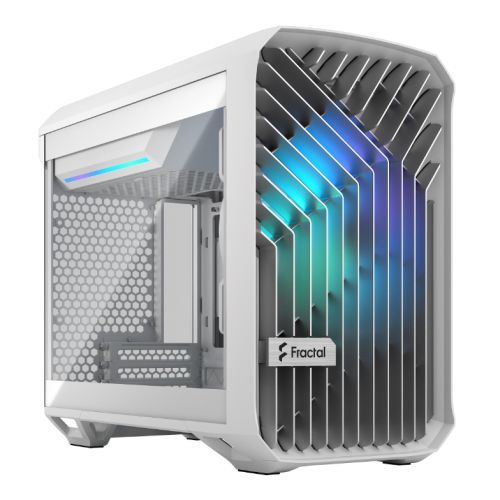

Fractal Design Torrent Nano Light TG RGB White Case w/ Light Tint Glass

Torrent Nano

The Torrent Nano is built to maximize cooling potential straight out of the box. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels.



• • Open grille and 180 mm front fan optimized for maximum air intake
• • Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
• • Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs

Variation

Torrent NanoTorrentTorrent Compact



Streamlined airflow

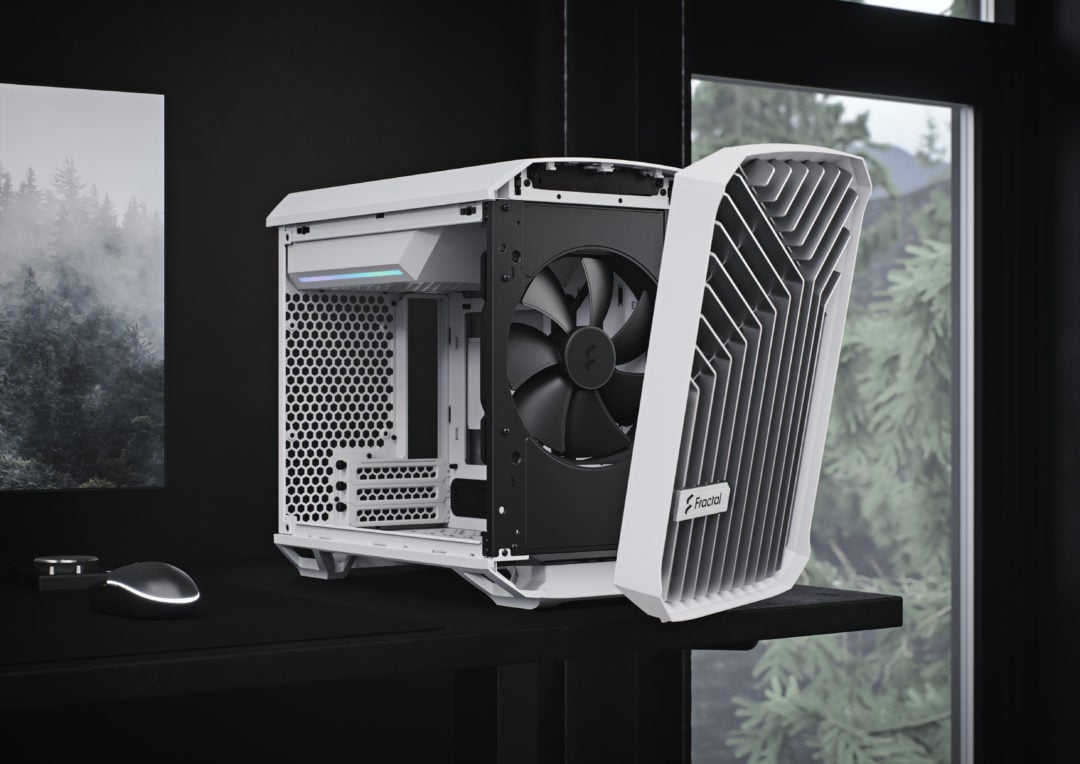

Top-tier airflow

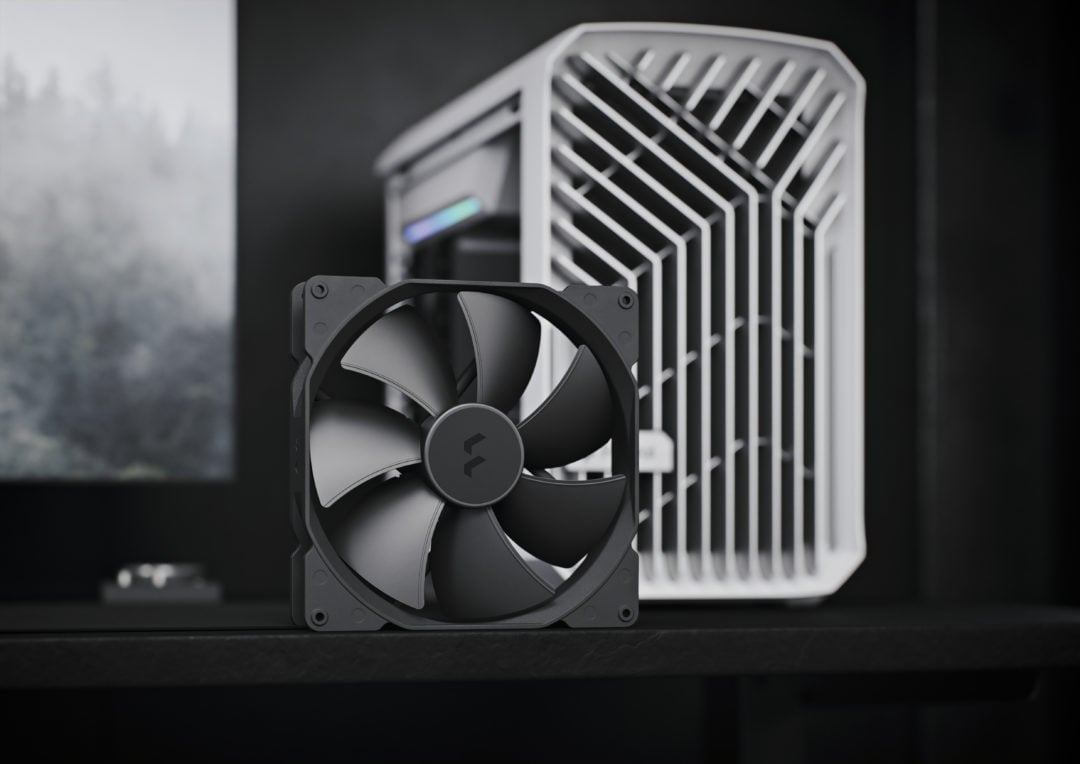

• The included Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
• Front fan brackets allow for unblocked airflow to the larger fan while catering to standard radiator sizes
• Dust filters for front and bottom easily accessible by removing the front

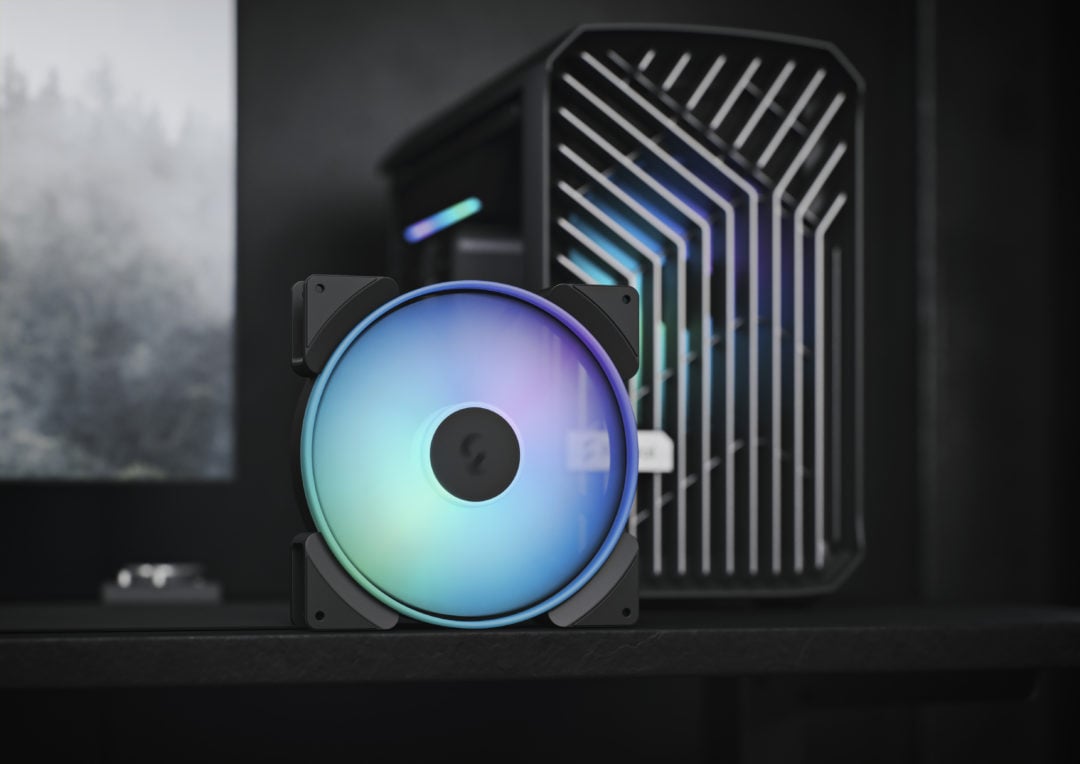

Prisma AL-18 PWM



Streamlined inside and out

Open interior and a top mounted PSU provides plenty of breathing room for components

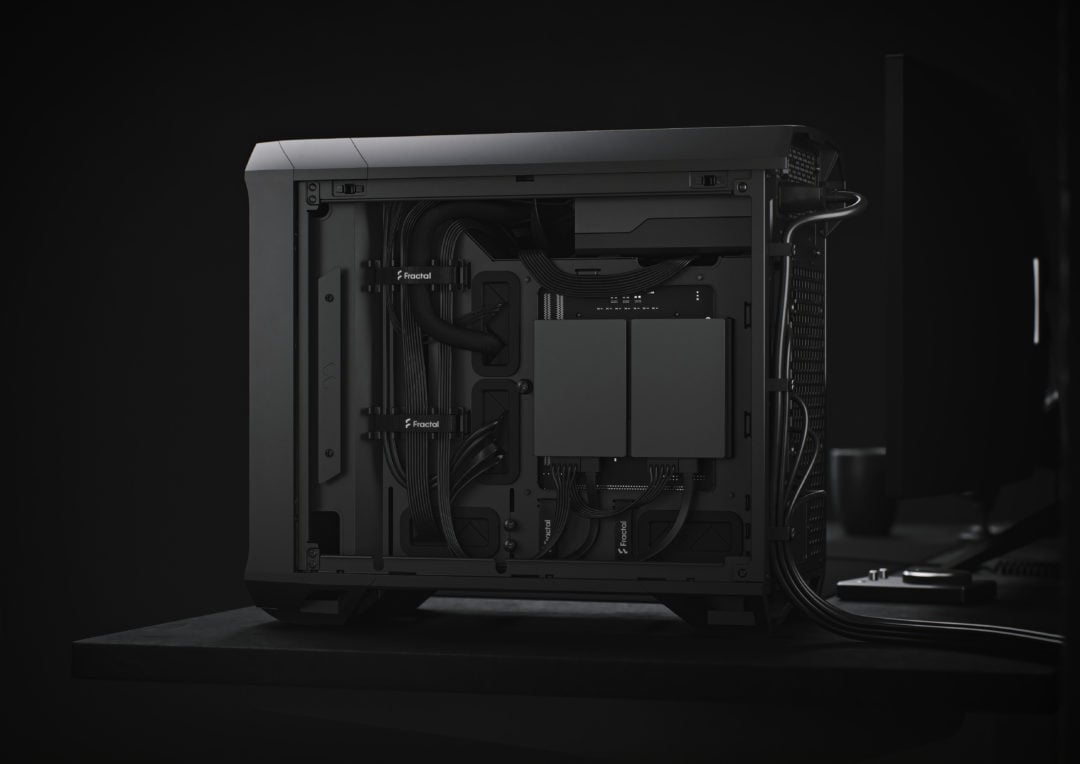

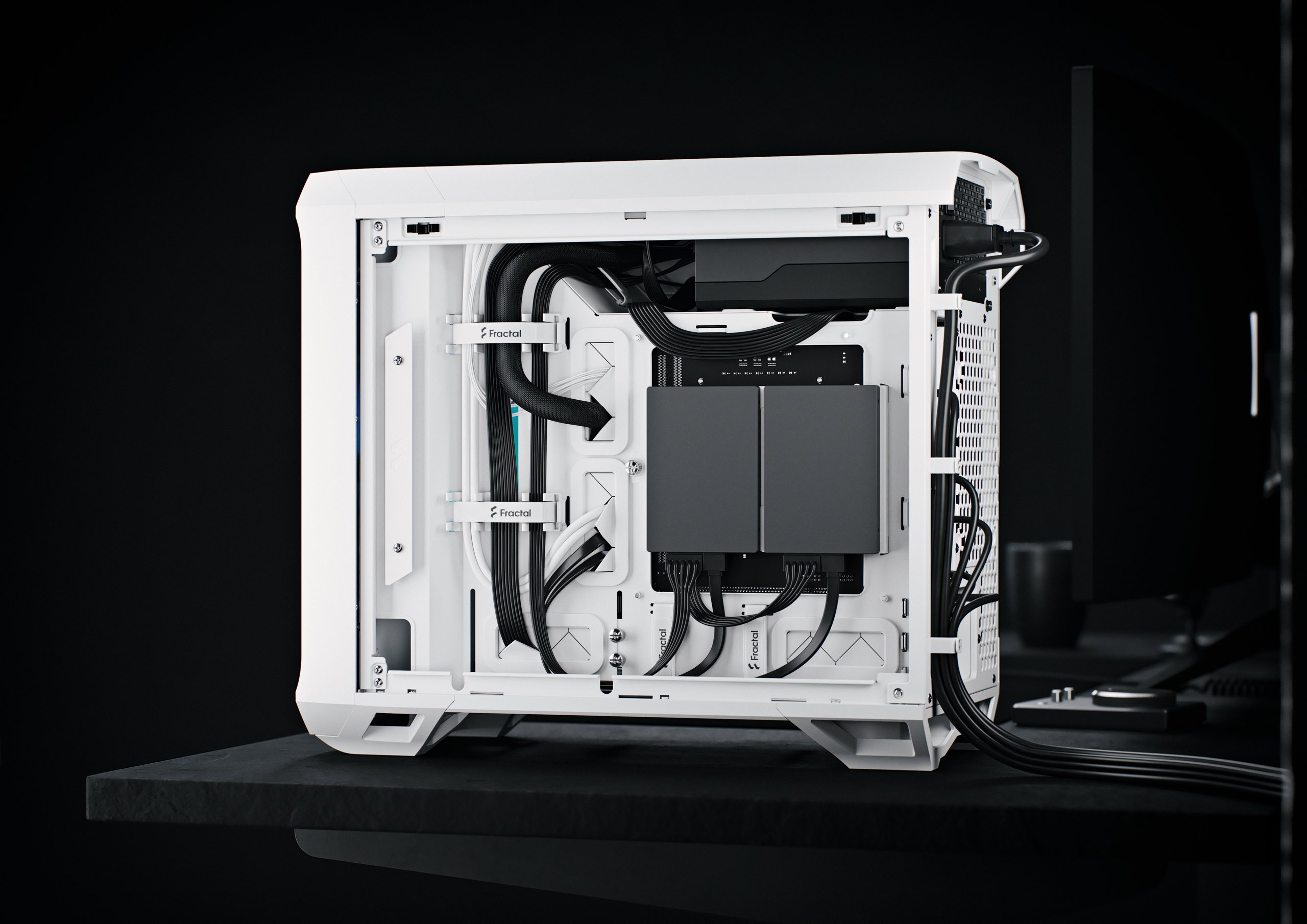

Quick start, clean finish

• Removable top bezel and routing clips with cable ties make for easy installation and cable management
• A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
• A dedicated SSD bracket with room for 2x 2.5” drives included

Transparently easy

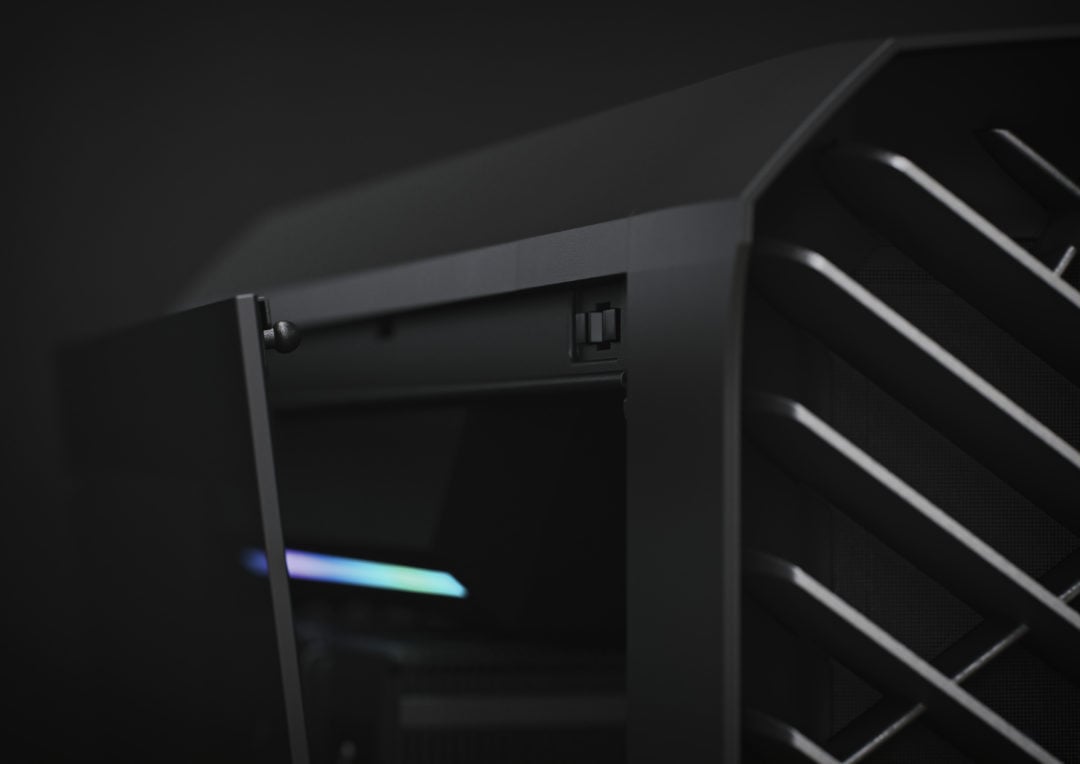

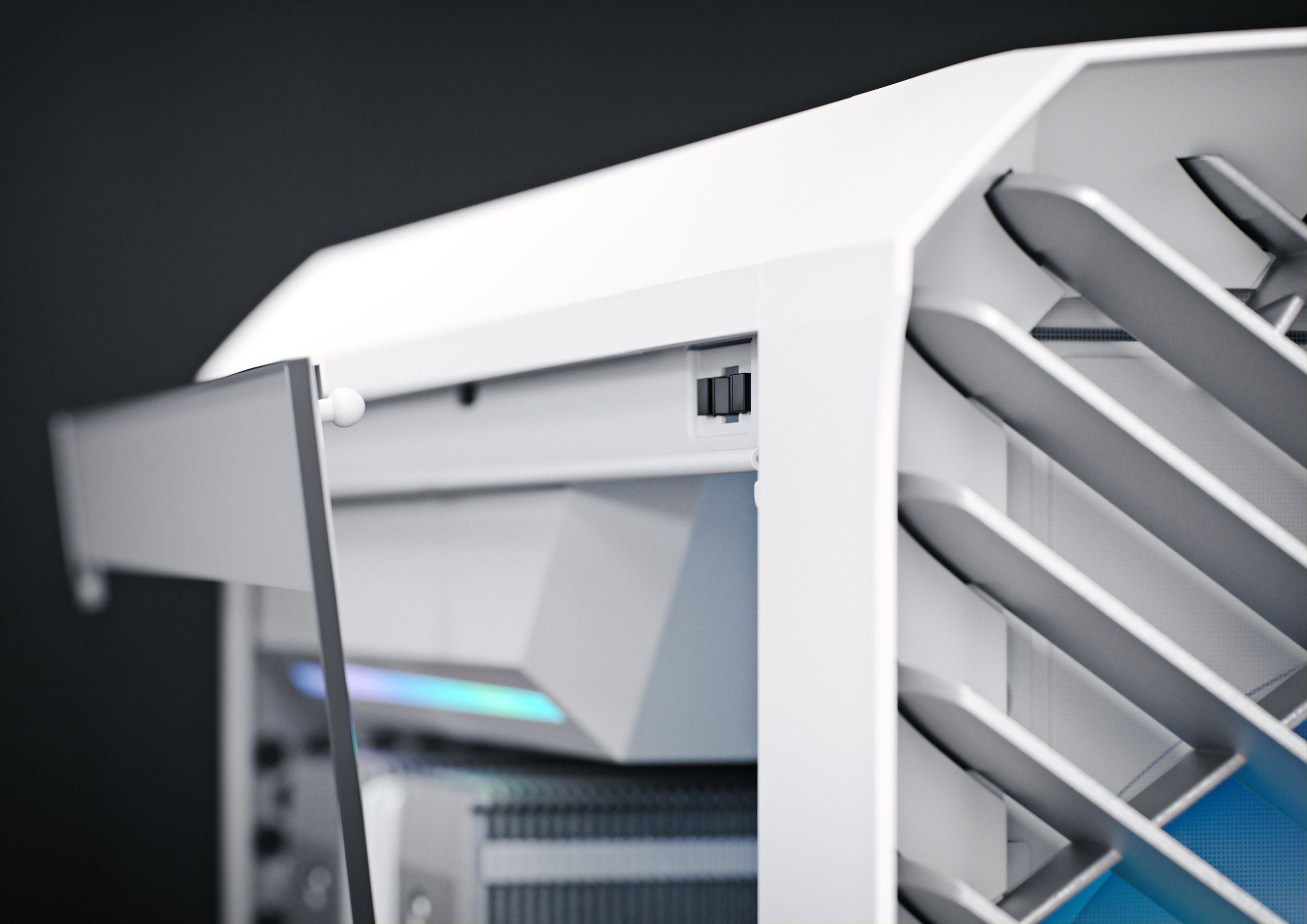

• Seamless tempered glass panels (TG versions) with bolt-free top-latching mechanisms for easy handling

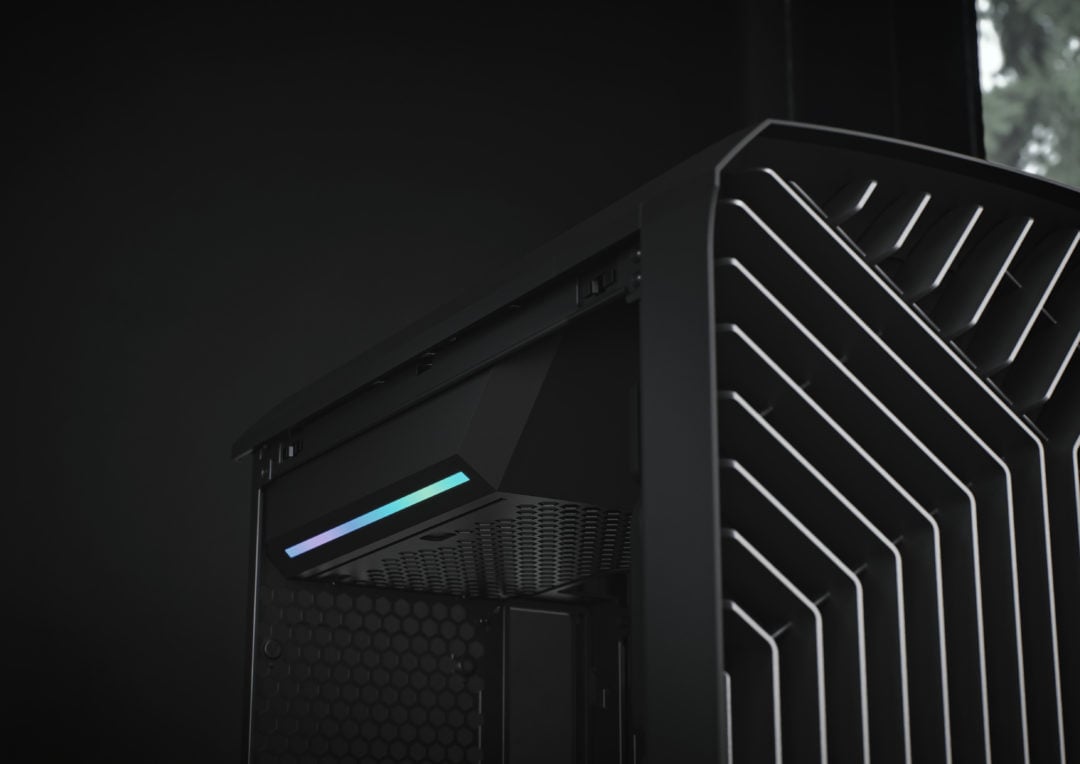

• Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
• LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)



Included GPU support bracket

Helps your GPU stay level (user assembled, instructions included)

With flexibility in focus

• Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
• Integrated support for a water-cooling reservoir on the motherboard tray
• Comes with included GPU support bracket that helps your GPU stay level

ReviewsVideos

Language

•

•

•

•

•

•

•

"The Nano offers, in addition to excellent airflow, quite a bit of cooling flexibility, support for large system components, and it looks and feels well made."

•

PC PerspectiveRead the full review

"It's unquestionably easier to build a system inside the Nano than any other Mini-ITX case we've ever tested. The chassis also offers ample room for adding large air coolers and graphics cards and plenty of storage devices."

PCMag.comRead the full review

"If you're looking for a stylish compact chassis to house your Mini ITX motherboard that offers flexibility, functions, and outstanding looks, the Fractal Design Torrent Nano certainly delivers."

•

Guru3DRead the full review

•

Kitguru.netRead the full review

"As that is what the Torrent series is all about, this is a cool-looking, recommendable case. "

•

TechpowerupRead the full review

















Videos



Full Disassemble



Filter Removal



GPU Bracket



Fan Bracket

Specifications

• 3.5"/2.5" drive mounts

  1 (included)

• Dedicated 2.5" drive mounts

  2 (included)

• Expansion slots

  3

• Front interface

  1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio

• Total fan mounts

  1x 180 mm, 4x 140 mm, or 5x 120 mm (with included brackets)

• Front fan

  1x 180 mm or 2x 140/120 mm (with included bracket) (1x Dynamic GP-18 included in standard versions, 1x Prisma AL-18 included in RGB version)

• Dust filters

  Front, Bottom

• Fixed cable straps

  Yes

• Cable routing grommets

  Yes

• Tool-less push-to-lock

  Side panels

• Captive thumbscrews

  HDD and SSD brackets

• Left side panel

  Steel or Tempered glass (RGB version: Tempered glass only)

• Right side panel

  Steel or Tempered glass (Solid/White RGB: Steel, TG/Black RGB: Tempered Glass)

Compatibility

• Motherboard compatibility

  mITX / mDTX

• Power supply type

  ATX

• PSU max length

  200 mm

• GPU max length

  335 mm with front fan mounted

• CPU cooler max height

  165 mm

• Rear fan

  1x 120 mm (not included)

• Bottom fan

  2x 140/120 mm (not included)

• Front radiator

  Up to 240/140 mm

• Rear radiator

  120 mm

• Bottom radiator

  Up to 240/280 mm

• Cable routing space

  29 mm

Dimensions

• Case dimensions (LxWxH)

  417 x 222 x 374 mm

• Net weight

  BK TGD/TGL: 6.0 kg, WT TGC: 5.8 kg, BK Solid: 5.5 kg

• Package dimensions (LxWxH)

  446 x 300 x 538 mm

• Gross weight

  BK TGD/TGL: 7.8 kg, WT TGC: 7.5 kg, BK Solid: 7.2 kg

Other

• Package contents (non RGB versions)

  Torrent Nano, 1x Dynamic GP-18 fan, Accessory box with screws etc. , User manual, Extra front fan brackets, GPU support bracket

• Package contents (RGB version)

  Torrent Nano, 1x Prisma AL-18 fan, Accessory box with screws etc. , User manual, Extra front fan brackets, GPU support bracket

• EAN

  Black RGB TG Light Tint: 7340172702948, Black TG Dark Tint: 7340172702931, White TG Clear Tint: 7340172702955, Black Solid: 7340172702962, White RGB Clear Tint: 7340172705246

• UPC

  Black RGB TG Light Tint: 843276102944, Black TG Dark Tint: 843276102937, White TG Clear Tint: 843276102951, Black Solid: 843276102968, White RGB Clear Tint: 843276105242

• JAN

  Black RGB TG Light Tint: 4537694282963, Black TG Dark Tint: 4537694282956, White TG Clear Tint: 4537694282970, Black Solid: 4537694282987, White RGB Clear Tint: 4537694311717

• Product code

  Black RGB TG Light Tint: FD-C-TOR1N-02, Black TG Dark Tint: FD-C-TOR1N-01, White TG Clear Tint: FD-C-TOR1N-03, Black Solid: FD-C-TOR1N-04, White RGB Clear Tint: FD-C-TOR1N-05
