• Asus 1200W TUF Gaming Gold PSU, Fully Modular, 80+ Gold, Double Ball Bearing Fan , ATX 3.0, PCIe 5.0 product image
1 1

Asus

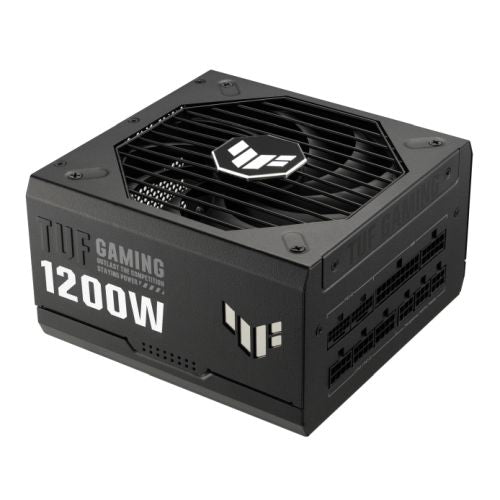

Asus 1200W TUF Gaming Gold PSU, Fully Modular, 80+ Gold, Double Ball Bearing Fan , ATX 3.0, PCIe 5.0

Asus 1200W TUF Gaming Gold PSU, Fully Modular, 80+ Gold, Double Ball Bearing Fan , ATX 3.0, PCIe 5.0

£217.99 GBP
£217.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
TUF Gaming 1200W Gold


The TUF Gaming 1200W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
  • Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • A protective PCB coating protects against moisture, dust, and extreme temperatures.
  • An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • Fully modular etched cables keep your rig neat and tidy.

Built For The Long Haul

Top marks

With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1200W Gold empowers you to build in confidence.

TUF Components

2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Dual Ball Fan Bearings

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

Protective PCB Coating

Heart of gold

The TUF Gaming 1200W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

80 Plus Gold Certification

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1200W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your rig for the next generation.

ATX 3.0 Compatible

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 40°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 99A 0.8A 3A

Combined Load

130W 130W 1188W 9.6W 15W

Total Output

1200W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Weight

2.66kg (single PSU)

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
